Elson Replacement Products

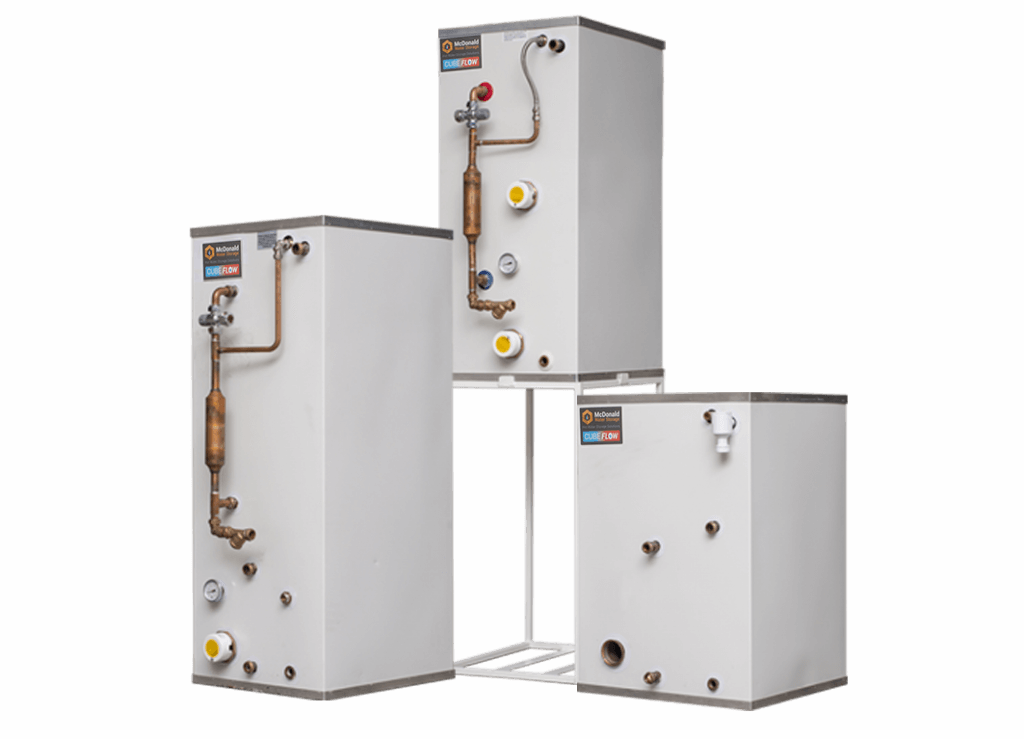

The ELSOflow rectangular, copper hot water tank is the perfect like for like replacement for the original Elson hot water tanks.  The tanks are available as either a traditional combination tank (providing gravity hot water) or as a thermal store unit (delivering mains pressure hot water).

McDonald Water Storage launched their ELSOflow rectangular tank in 2011 to provide direct replacements for the discontinued Elson rectangular water heater range.

As well as purchasing machinery from Elson, we also employed a number of key members of the Elson team, including the highly experienced, Production Engineer and Technical Sales Manager, who brought almost 25 years of experience and knowledge from Elson and their predecessor, Elsy and Gibbons. This enabled us to bring the core strengths of the Elson Water Heater and combine them with our technical expertise to offer a solution which can confidently claim to be an exact like for like replacement.

The ELSOflow hot water tank range has a selection of water heater cylinders that can be heated electrically, or indirectly by a gas or oil boiler, multifuel stove or log burner, solar thermal, heat pump, or a combination of these sources.

The rectangular tanks were originally designed as space saving solutions to fit snugly within tight spaces, such as airing cupboards and loft spaces.

To achieve the height required by the gravity fed system, the Elson water heaters were designed and supplied to be located on a shelf and therefore any changes to specification would compromise on capacity, space and ease of installation.

Would you like a full quote for the supply and installation of the ELSOflowClick Installation Quote opposite, providing your contact details and detailing the current system you have installed.

  • Direct replacement for existing Elson tanks, providing a simpler installation and reducing distruption to the homeowner
  • Available in a range of standard sizes for like for like replacement, or bespoke designed to fit the space available
  • Saves space – designed to take 27% less space than a cylinder
  • Models suitable for either floor standing, on a frame or wall hung
  • Flexibility with models to incorporate a range of heat inputs including electricity, gas, oil or central plant boilers and renewable energy
  • Fit and forget solution – open vented water heating with no annual service requirements
  • Being copper provides complete peace of mind, killing 99% of bacteria

Elson maxistore replacementReplacement for Elson Maxistore

Electric Combinations Units suitable for use with Economy 7 and Economy 10 cheap rate electricity tariffs.

Additional options include:

  • Immersion Heaters
  • Solar Coil
  • Solid Fuel Connections

ELSOflow OpalReplacement for Elson Opal

Electric Combinations Units suitable for use with Economy 7 and Economy 10 cheap rate electricity tariffs.

Additional options include:

  • Immersion Heater
  • Solar Coil
  • Solid Fuel Connections

ELSOflow PearlReplacement for Elson Pearl

Our ELSOflow Pearl provides an electrically heated, wall mounted hot water storage solution, which is perfect for single or multi-point applications such as schools, cloak rooms, offices and portable buildings, or places where safety is critical.

Available in 25 litres, 50 litres, 70 litres and 90 litres and comes complete in a cased unit with factory applied insulation.

Also included are ballvalve and float and overflow with optional 3kW Immersion.

Alternative capacities are also available.

ELSOflow EmeraldReplacement for Elson Ruby, Emerald, Sapphire and Diamond

Indirect Combination Units suitable for:

  • Open vented gravity systems (multi fuel or log burner)
  • Fully pumped gas/oil boiler primary systems
  • Sealed systems



The unit incorporates both a cold feed cistern and a primary feed and expansion tank, to fully separate the primary and domestic systems.

Additional options include:

  • Immersion Heater
  • Solar Coil
  • Heat Pump Coil
  • Solid Fuel Connections

ELSOflow AmethystReplacement for Elson Amethyst

Indirect Sealed System Combination Units suitable for use with sealed system boilers, district heating or central boiler schemes, where expansion of the primary system water is accommodated elsewhere in the system.

Additional options include:

  • Immersion Heater
  • Solar Coil
  • Heat Pump Coil

Replacement for Maxistore Twin

Our ELSOflow Maxistore Twin Hot is an electrically heated open vented combination hot water storage unit which provides hot and cold water. It can be installed at a high level in cupboard or within a roof space.  Insulation between the hot tank and the cold tank, ensures little heat transfer.

Contact us and let us know the dimensions of your original Elson 600 or the space you have available to fit our ELSOflow option

Additional options include:

  • Immersion Heater
  • Solar Coil
  • Heat Pump Coil

Replacement for Elson Twin

The ELSOflow Twin range provides hot and cold water storage. They are supplied as two separate tanks utilising either Amethyst, Opal or Emerald designs for the hot water tank.

Both tanks can be installed together at a high level in cupboard or within a roof space.

Replacement for Elson 600e, Elson 600i and Elson 600c models

Our ELSOflow Indirect Twin Hot and Cold storage units, provide gravity hot water, as well as including an integrated 115 litre cold water storage tank, with ballvalve, float and overflow. The 115 litre tank can be integrated with all our ELSOflows as required – sealed system and open vented indirects and also direct electric units.  Insulation between the hot tank and the cold tank, ensures little heat transfer. Available with 2 year warranty

Contact us and let us know the dimensions of your original Elson 600 or the space you have available to fit our ELSOflow option

Additional options include:

  • Immersion Heater
  • Solar Coil
  • Heat Pump Coil

Replacement for Elson Coral E

The Coral E is a floor standing thermal store mains pressure system. The store itself is vented and heated by immersion heaters to high temperature.

This range is manufactured under the CUBEflow brand of thermal stores. Please click here for the product page.

Suitable for use with off peak electricity tariffs. Solid Fuel connections and/or a Solar coil, can also be added.

Replacement for Elson Coral Si

The Coral Si is a floor standing thermal store mains pressure system. The store itself is vented and is heated indirectly by a coil linked to either a sealed system boiler, or a district central boiler plant.

This range is manufactured under the CUBEflow brand of thermal stores. Please click here for the product page.

A back-up immersion can also be fitted, as well as additional connections for solid fuel and/or a solar coil.

A standard range of rectangular copper, hot water tanks and cylinders are available – for a guide to sizing and dimensions simply visit our sizing page.

In addition, we also manufacture bespoke tanks and hot water cylinders and can provide advice on sizing, design and a survey service if required.

To discuss your options, including Elson water heater replacements, contact us on 01592 611123 or contact us online.

Our focus is very much on the manufacture of copper hot water cylinders and tanks. Copper provides fantastic benefits including;

  • Ability to kill 99% of bacteria including Ecoli and legionella
  • One of the most efficient conductors of heat
  • Significantly more flexible for manufacturing than other materials
  • Long lifespan due to its amazing resistance to corrosion
  • 100% recyclable



For further information see our brochure The Ultimate Supermetal or visit our Copper Facts page.
