Cold Water Storage Solutions
We have extended our range of water storage solutions to include a wide selection of cold water storage tanks.
These innovative cold water storage tanks are manufactured from state-of-the-art GRP materials. Low maintenance, long-lasting and highly cost-effective, these tanks are a perfect option for a wide range of cold water storage applications.
These potable water tanks are available in one piece, two piece and sectional formats. Provide us with the available space dimensions and we can advise on the best option available.
Our tanks are also available to purchase with the additional components required for installation, providing a single point of purchase.

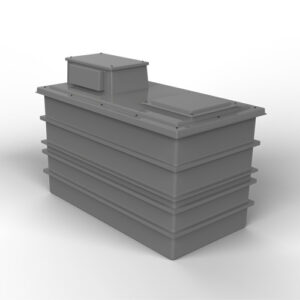

A comprehensive range of one piece cold water storage tanks manufactured from WRAS approved Grp materials.
Fully encapsulated insulation to sides and lid. Close fitting and sealed lid which is removable for maintenance.
Tanks storing over 1000 litres nominal have an access man-way with removable lid providing a 520 x 520mm opening, allowing access for maintenance and inspection.
Suitable for all cold water applications including:
- Potable and Non potable water storage.
- Process water (including process cooling) applications -15º to +30ºc
.
Provides mains water protection for fluid category 1,2,3 & 4 with standard lid arrangement & fluid category 5 when back flow protection is required.
- Full WRAS approval
- Manufactured to BS EN 13280:2001
- Quality System manufactured in accordance with ISO 9001: 2000
.
Manufactured from highest quality Grp materials. CFC free PU foam insulation is completely encapsulated within the Grp laminate.
Structural support where required is provided by rolled hollow section steel, braced with welded corner angles, which is then completely encapsulated within the Grp laminate.
The outer surface of the tank is coated with polyester gel coat to ensure tank suitability for external positioning in most extremes of weather as standard.
A Comprehensive range of two piece cold water storage tanks manufactured from WRAS approved Grp materials. The same configurations and capacities as the one piece tank range.
Comprising an upper and lower section of equal height, incorporating an external horizontal joint flange allowing the sections to be bolted together on site.
All sealant and fixings for the joint flange are supplied with the tank. Please scan the QR code on the tank label to view assembly instructions.
Fully encapsulated insulation to sides and lid. Close fitting and sealed lid which is removable for maintenance.
Tanks storing over 1000 litres nominal have an access man-way with removable lid providing a 520 x 520mm opening, allowing access for maintenance and inspection.
The two piece units are particularly suitable for sites with access restrictions, allowing a large tank to be carried through a doorway or similar restriction, then assembled once in position.
Provides a cost saving in comparison to a sectional tank.
Suitable for all cold water applications including:
- Potable & Non Potable water storage
- Process water (including process cooling) applications -15º to +30ºc
.
Provides mains water protection for fluid category 1,2,3 & 4 with standard lid arrangement & fluid category 5 when back flow protection is required.
- Full WRAS approval
- Manufactured to BS EN 13280:2001
- Quality System manufactured in accordance with ISO 9001: 2000
.
Manufactured from highest quality Grp materials. CFC free PU foam insulation is completely encapsulated within the Grp laminate.
Structural support where required is provided by rolled hollow section steel, braced with welded corner angles, which is then completely encapsulated within the Grp laminate.
The outer surface of the tank is coated with polyester gel coat to ensure tank suitability for external positioning in most extremes of weather as standard.
Our range of sectional cold water storage tanks are designed in a modular format, which allows a comprehensive range of
tank sizes and configurations. They comprise of individual bolt-up panels which are assembled on site.
In order to calculate the nominal capacity of the tank, simply multiply the length x width x height.
There can be multiple configurations of our tanks, for example a 2 x 2 x 1m tank is not the same as a 2 x 1 x 2m tank.
Sectional tanks are designed for two specific applications:
- For storing water in large capacities from 125 litres up to 2,000,000 litres.
- To allow the site assembly of a water storage tank where access restrictions or other conditions deny the installation of one and two piece tanks.
