Our CUBEflow thermal store range is synonymous for installations into restricted spaces, primarily in apartment properties where space is a premium. With the rectangular design of the store, it takes up to 27% less space than an equivalent volume cylinder, freeing up space for other uses.

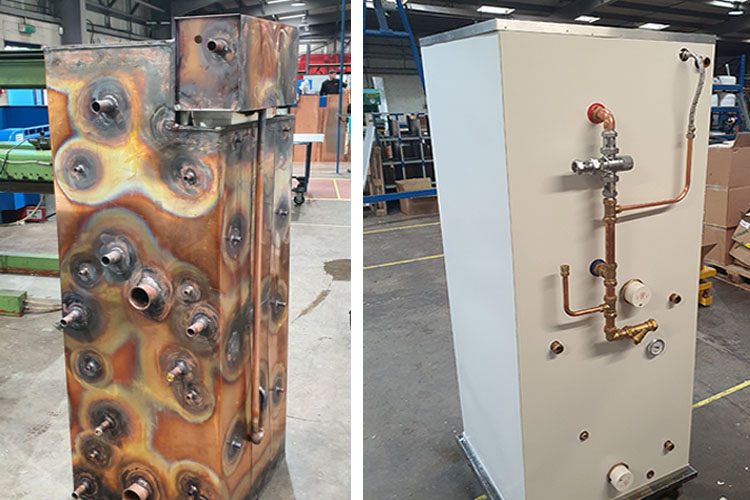

This space saving solution was recently applied on a large scale with a 480 litre unit providing a high performance, mains pressure hot water solution. Although there was a high volume of hot water required, the space was severely restricted and could not accommodate a standard cylinder and one of the largest CUBEflow units we have manufactured proved to be the perfect solution.
The bespoke design unit contained 54m of internal coils with a sealed system boiler coil, heating coil and domestic hot water coil. The unit had a footprint of 700mm x 700mm with the tapping configuration to suit the installers requirements. From the installers perspective, having a unit purpose designed to fit a confined space was a major benefit, and as the thermal store does not require any discharge pipework associated with unvented cylinders, the time on installation was also reduced.
For more information on our CUBEflow range and their application click here.
